SYSTEC PLUNGER CONTROLLERS

The SPC-100 is Systec's entry level controller, similar to the Ferguson Auto Cycle Controller.
Operates on 5-24Vdc. 6V 5-AHr battery with 10W solar panel incuded.
Three latch valve outputs.
Discrete inputs for manual ON, OFF, High Line Pressure, and Plunger Arrival Signal.
Standard size for 8" x 8" enclosure.
P/N 2327000-00.
Available as faceplate only for retrofits (2327300-00).

The SPC-200 is Systec's most advanced and most flexible plunger controller.
Includes 3 fully configurable analog inputs for pressure sensing (0-10Vdc, 4-20mA).
Includes one 4-20mA analog output for flow control.
On-board 24Vdc power supply for analog transducers.
Two independent ModBus RTU slave interfaces.
Operator selectable open triggers: Time, Casing PSI, Tubing PSI, Load Factor, T-L PSI, C-T PSI, C-L PSI.
Operator selectable close triggers: Time, Flow Rate, Casing PSI, Tubing PSI, T-L PSI, C-T PSI, C-L PSI, Casing Upturn.
Each trigger set point can be auto adjusted if desired.
Each trigger includes an optional backup timer.
Operates on 5-24Vdc. 6V 12AHr battery and 10W solar panel included.
P/N 2411000-00.
Available as faceplate only for retrofits (2411300-00).

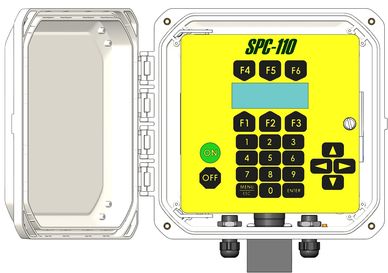

The SPC-110 is the same as the SPC-100 but includes an RS-485 port for ModBus RTU communications.
P/N 2510000-00.
Available as faceplate only for retrofits (2510300-00).

The SPC-150 is a hybrid unit that includes the lower cost hardware of the SPC-100 but runs the more advanced program of the SPC-200.
All analog input values must be provided over the ModBus RTU interface.
P/N 2511000-00
Available as faceplate only for retrofits (2511300-00).

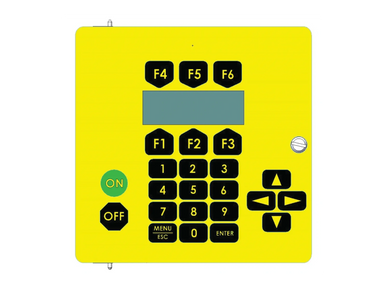

Each controller front panel is offered as just a faceplate for retrofits into existing enclosures.
Faceplates include the sheet metal front panel, hinges, thumbscrew, keypad, and controller PCB.
P/N 2327300-00: SPC-100
P/N 2510300-00: SPC-110
P/N 2511300-00: SPC-150
P/N 2411300-00: SPC-200
