SYSTEC PLUNGER SENSORS

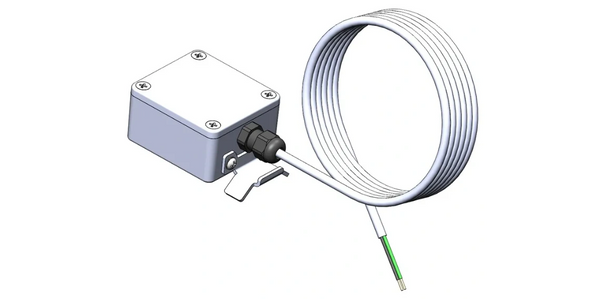

SPS-100
- The SPS-100 is Systec's premier Plunger Sensor.
- It implements a 3-dimensional magnetometer and 3-axis accelerometer for unparalleled sensing capability.
- Two operating modes: Magnetic only, or Combined Magnetic and Vibration.
- Adjustable sensitivity and adjustable output signal duration.
- Hose clamp and 10' 3-conductor cable included.
- Operates on 5-24Vdc.
- Aluminum enclosure.
- P/N 2325000-50.

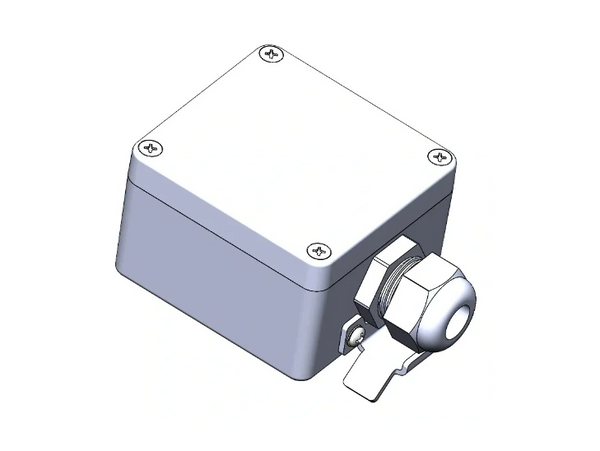

SPS-100-1/2
- The SPS-100-1/2 contains a slightly larger aluminum enclosure to accommodate a 1/2" conduit connector for customer supplied wiring.
- Hose clamp included.
- P/N 2325000-25.
SPS-100 EXP
SPS-100 EXP
SPS-100 EXP

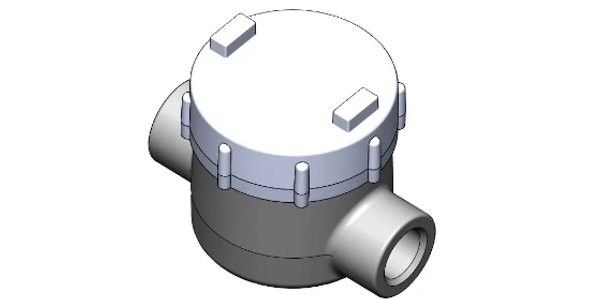

- The SPS-100-EXP is an explosion proof version of the SPS-100.
- Two 1/2 NPT ports for conduit connectors (one port factory plugged with removable plug).
- Two hose clamps included.
- P/N 2325000-75.
SPS-102
SPS-100 EXP
SPS-100 EXP

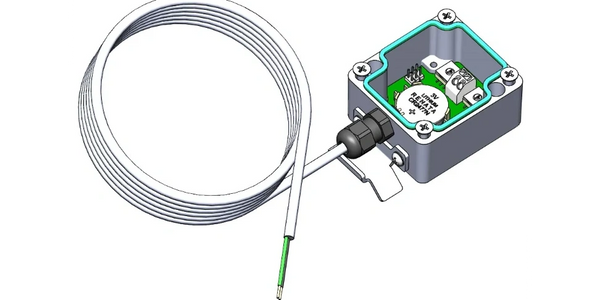

- The SPS-102 is a two-wire battery powered sensor.
- CR2477N 3V 950mAh battery for 18 month battery life.
- Magnetic only sensing.
- Adjustable sensing and pulse output duration.
- Aluminum enclosure.
- Hose clamp and 10' 2-conductor cable included.
- P/N 2407000-00.
